HXGD-TGD-T150F
2020-07-27 625
Product Name:

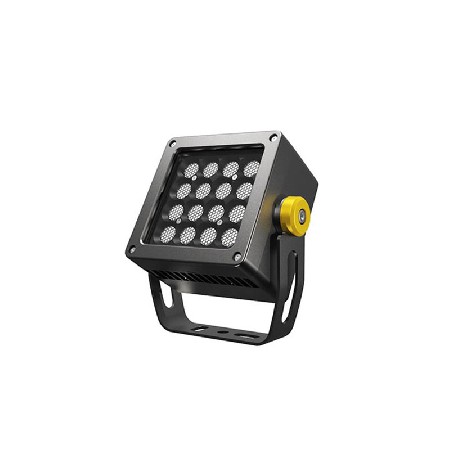

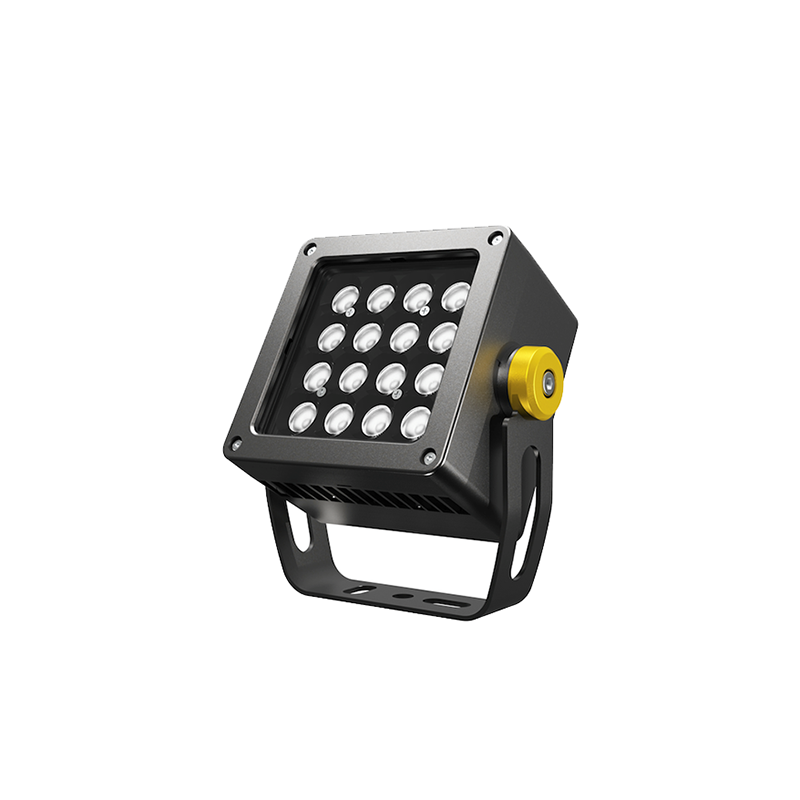

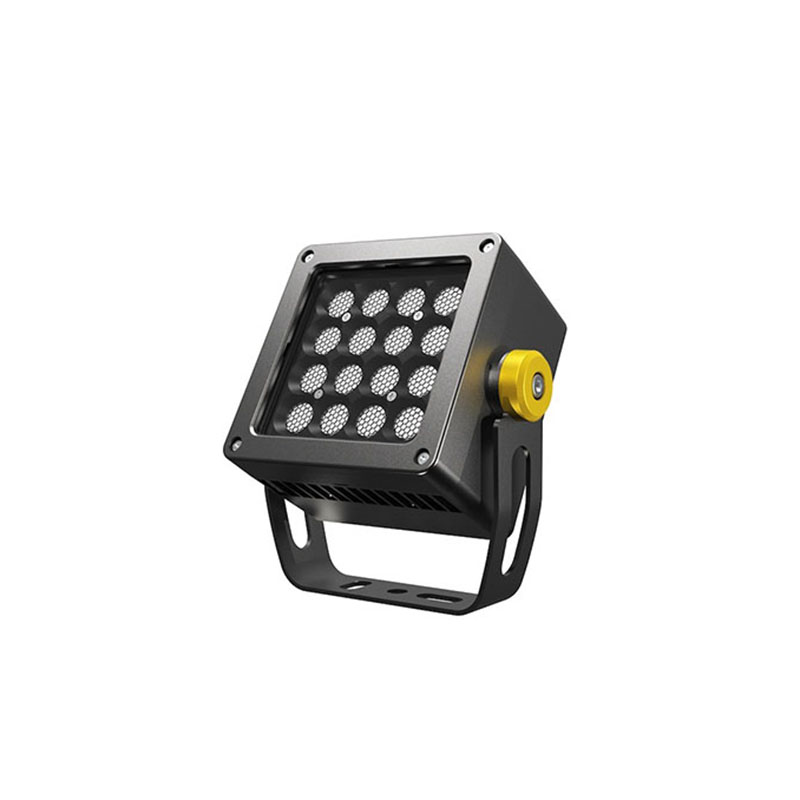

HXGD-TGD-T150F
Application range:
It is suitable for the lighting of buildings, bridges and buildings in the city;
Product features:
The lamp body is made of commercial aviation aluminum material with pure structure design, and the surface is treated by electrostatic powder spraying with environmental protection characteristic color. The scientific waterproof design structure, high-quality sealing ring and balance of internal and external pressure breathing valve ensure that the product's waterproof, moisture-proof and dust-proof grade reaches IP66;
The characteristic disc type mounting bracket is easy to install and the stress surface is uniform and reliable.
Product parameters:
Product modelProduct Model | HXGD-TGD-T150F |
Input powerInput Voltage | AC220V/DC24V |
Power frequencyFreqency Range | 50HZ-60HZ |
power factor Power Factor | >zero point eight eight |
LEDDriving modeLED Driving Mode | Built in waterproof power supply |
LEDlifeLED Life | 50000H |
LEDcolourLED Color | Pure white, warm white, yellow light, colorful |
LEDnumberLED Quantity | 12pcs |
Light distribution modeLight Design | Optical lens |
Beam angleBeam Angle | 5 degrees,15°,Twenty-five°,30°、Forty-five°、60° |
LEDpowerLED Power | 16W/24W/32W |
LEDNode temperature riseLED Node Temperature | <65°C |
working temperature Working Temperature | -40°C- +55°C |
Protection levelIP Grade | IP65Structural waterproofing |
Shell materialShell Material | Tempered glass, heat dissipation aluminum |
Power cablePower Cables | BrownBrown blueBlue Ground wireGND |
Lamp sizeSIZE | W150*H150*L205 |

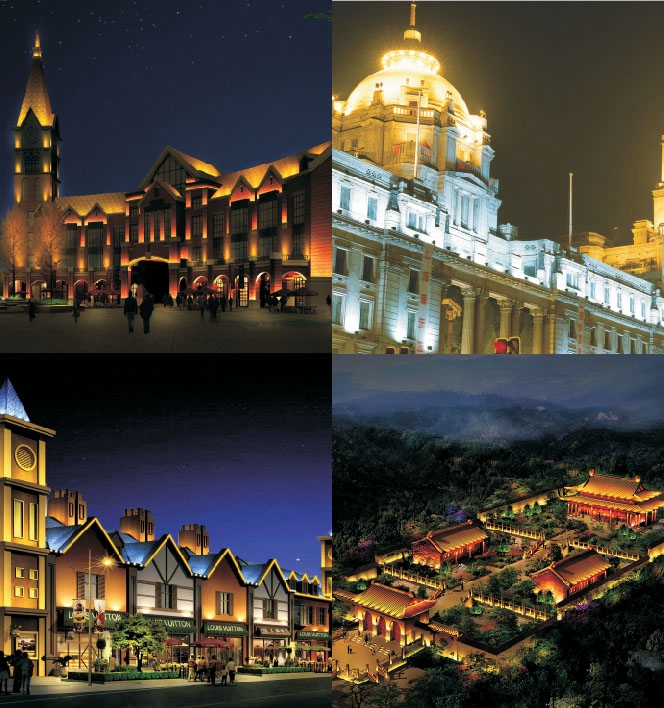

Application example:
